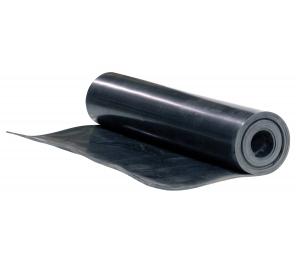

3R815LC
Rubber
The 3R815LC offers similar specifications found in the top quality 3R815 neoprene rubber. It can be used in many applications where less particularities are required. It is provided in three different durometers.
Applications
This material can be used as flange gasketing and as static joints. It is also used in applications where the material is in contact with harsh atmospheric conditions.
Specifications
Technical Data
| Polymer | CR |
|---|---|
| Color | Black |
| Hardness (Shore A) ± 5 | 60 |
| Temperature | -25°C to 85°C (-10°F to 185°F) |
| Tensile Strength | 500psi nom. |
| Elongation | 300% min. |
| Compression Set | Good |
| Abrasion Resistance | Good |
| Tear Resistance | Good |
| Ozone Resistance | Fair |
| Impermeability to Gases | Fair to Good |
| Resistance to Dilute Acid | Fair |
| Résistance to aromatic hydro-carbons | Fair |
| Heat Aging | Fair |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
