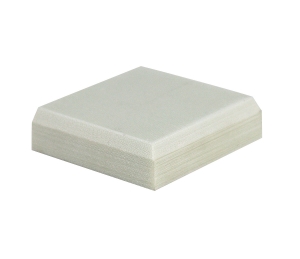

NEMA G7
The G7 is a utility grade, glass fabric combined with a silicone resin system. It offers excellent mechanical and electrical characteristics, as well as high temperature insulative properties. This material can withstand short-term exposure temperatures of up to 1112°F and continuously up to 428°F.
Downloads
Applications
It is used in most heating, appliance insulation and some bearing applications.
Specifications
Technical Data
| Specific gravity | 1.88 |
|---|---|
| Tensile strength (psi) | 18.000 |
| Hardness, M Scale | 100 |
| Bonding strength (lbs) | 600 |
| Dissipation facteur @ 1 MHz | .002 |
| Electric strength - volt / 1000 | 350 |
| Flammability rating | V-O |
| Continuous temperature | 428 °F (220 °C) |
| Maximum temperature | 1112°F (600°C) |
| Water absorption % | 0.19 |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
