3R4060

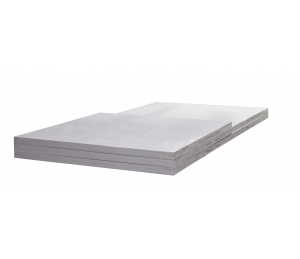

Marinite P

The marinite P has a good resistance to compression and bending. It is ideal for making freestanding panels, and is also used for applications requiring minimum heat distortion.

Applications

Principal applications : oven walls and linings, welding insulation, fire doors, fire training burn buildings, cable trays, personnel protection, and as insulation for marine ships and off-shore rigs.

Back-up insulation applications : ladles, torpedo cars and tundishes in the iron and steel industry, lime and cement plant rotary kilns, and aluminium die cast holding furnaces.

Specifications

Technical Data

Density lbs /pi³ (kg/m³) 60 (961)
Modulus of Rupture (Flexural Strength) psi (kg/cm²) 1400 (98)
Compressive Strength
Ultimate laod psi (kg/cm²) -
@ 5% deformation psi (kg/cm²) 3050 (214)
Moisture Content (normal), % of dry weight 3.0
Thermal Conductivity
Mean Temperature, Btu-in/ft², hr, °F
250°F -
400°F 1.13
600°F 1.15
800°F 1.16
1000°F 1.17
Mean Temperature, (W/m°K)
121°C -
204°C 0.16
316°C 0.17
427°C 0.17
538°C 0.17
Shrinkage
24 hrs @ 649°C
Linear (Length or width), % 0.6
Thickness, % 2.1
Electrical
Arc Resistance, seconds, ASTM D 495 -
Volume Resistivity, ohm-cm, ASTM D 257 5.0 X (10^8)
Dielectric Strength, v/mil, ASTM D 495 46
Screw Holding Strength
@ 7/8" penetration, lbs (kg) 500 (227)
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
