3R4085

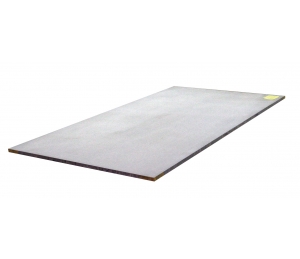

This board is hydraulically pressed into monolithic boards from refractory cement and silica. It is then steam-cured, oven dried, and sanded to a standard 24 grit finish. The 3R4085 is a high-density, non-asbestos board used in a wide variety of applications where a combination of high strength, thermal stability, electrical insulation or machinability is required. It also has a low thermal conductivity, will not delaminate and is very durable. It offers a good shock resistance and will not chip.
The Transite 1000 is non-combustible and can withstand maximum operation temperatures from 600°F to 1000°F. However, it must be stored horizontally in a dry area to conserve its properties.
Downloads
Applications
Load-bearing gaskets, spacers and supports, busbar supports, transformer spacers, electrical coil supports, arc shields, collars and bushings, aluminium pot insulation, foundry core plates, induction and muffle furnace walls, industrial and baking oven shelving.
Specifications
Technical Data
| Temperature | Continuous: 316°C (600°F), Short term: 538°C (1000°F) |
|---|---|
| Density | 98 lbs/ft³ (1570 kg/m³) |
| Modulus of Rupture (flexural strength) | 3000 psi (211 kg/cm²) |
| Ultimate load | 13 350 psi (939 kg/cm²) |
| Moisture content (Normal), % of dry weight | 7 |
| Thermal Conductivity (Btu-in/ft², hr, °F) | 250°F: 2.40 |
| Thermal Conductivity (W/mk) | 121°C: 0.34 |
| Shrinkage 24h at 600°F | Linear: 0.14%, Thickness: 0.41% |
| Arc Resistance (ASTM D495) | 272 sec |
| Volume Resistivity (ASTM D257) | 1.25 X 10¹³ ohm-cm |
| Dielectric Strength (ASTM D-495) | 56 v/mil |
