TXP405
Silicone coated fiberglass

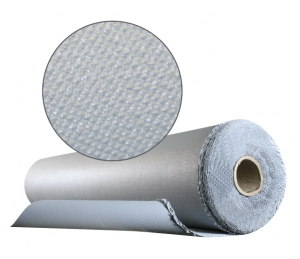

The TXP405 is a satin weaved fiberglass fabric coated with a silver rubberized silicone. It resists abrasion, flexing, tearing and puncturing. It protects from water, oil and chemical products and generates little smoke.
Downloads
Applications
This fabric is used for removable blankets, expansion joints, welding curtains and flexible connectors.
Specifications
Technical Data
| Temperature | -50°C to 260°C (-55°F to 500°F) |
|---|---|
| Color | Grey |
| Weight | 32oz/yd² |
| Thickness | 0.035" |
| Flame Resistance | Flame out (sec) 1 sec. Max.Afterglow (sec) 1 sec. Max.Char length (in) 1/16" max. |
| Tensile strength | Wrap 500 lbs/in min. average, Fill 400 lbs/in min. average |
| Tear Strength | Wrap 75 lbs min. average, Fill 40 lbs min. average |
| Mullen Burst | 400 psi min. average |
| Certifications | NFPA701/1999, ANSI/FM4950 for hot work protection |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
