3R810
PTFE

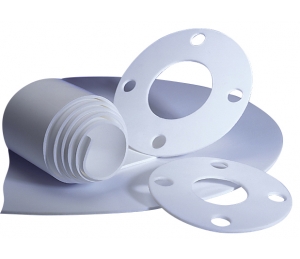

The PTFE (polytetrafluoroethylene) is a polymer, one of the most versatile plastics known to man. The 3R810 sheet can handle virtually all chemicals in the 0-14 pH range with the exception of molten alkali metals and elemental fluorine. The 3R810 is recommended for applications in the industrial and process industries. It is more economical than the virgin PTFE.
Downloads
Applications
This PTFE sheet can be used for industrial processes and is recommended for sealing joints where chemical products are present.
Specifications
Technical Data
| Temperature | -200°C to 260°C (-325°F to 500°F) |
|---|---|
| Color | White |
| Thickness | 1/64'', 1/32'', 1/16'', 3/32'', 1/8'', 3/16'', 1/4'' |
| Available sizes | 48'' X 48'', 60'' X 60'' or 48'' X 60'' (rolls) |
| Tensile strength at 73°F (ASTM D638-61T) | 1500-2400 psi |
| Elongation (ASTM D638-61T) | 75-200% |
| Water absorption (ASTM D570-59aT) | 0.001% |
| Dielectric strength in air (ASTM D257-61) | 450Volts/mil. |
| Specific gravity (ASTM D792-60T) | 2.15 - 2.2 |
Techical Data
| Dielectric constant (1000cps) (ASTM D150-59T) | 2.26 |
|---|
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
