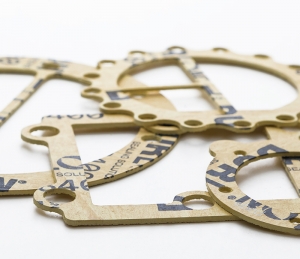

Durlon® 8400


Durlon® 8400 contains high temperature phenolic fibers and minerals combined with high-grade nitrile (NBR) rubber. It exhibits higher temperature limits than aramid based materials and the handling and cutting characteristics are greatly improved than carbon and glass fiber products.


The Durlon® 8400 is especially suitable in pulp and paper and chemical plant
applications. It is an excellent gasket material for use in steam, mild caustics and acids.


Technical Data

Color Gold
Minimum -100°F (-73°C)
Maximum 800°F (427°C)
Continuous 554°F (290°C)
Pressure, max, bar (psi) 103 (1500)
Density, g/cc (lbs/ft3) 1.7 (106)
Compressibility %, ASTM F36 8-16
Recovery %, ASTM F36 50
Creep Relaxation %, ASTM F38 25
Tensile strenght Mpa (psi), ASTM F152 12.4 (1800)
pH 2-13
Fluid resistance, ASTM F146
IRM 90 Oil 5 hours at 149°C (300°F)
Thickness increase % 0-15
Weight increase % 15
Fuel B 5 hours at 21°C (70°F)
Thickness increase % 0-10
Weight increase % 15
Leachable halides, max, ppm 1000
Leachable chlorides, max, ppm 400
Nitrogen sealibility, cc/min, ASTM F2378 0.03
Volume Resistivity, ohm-cm, ASTM D257 3.1 x 10^13
Dielectric breakdown (kV/mm), ASTM D149 14.6
Gasket factors
m 2.9
Y, psi 2140
Gb, psi 2000
a 0.194
Gs, psi 340
m 4.5
Y, psi 3967
Gb, psi 1076
a 0.29
Gs, psi 94
Flexibility, ASTM F147 8x
N.B. The information, details and values indicated are to the best of our knowledge. We recommend to conduct tests according to local conditions. The data is subject to some variations without notice.
