GPO3 PULTRUSION

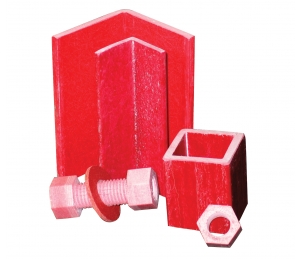

Standard pultrusion shapes for structures, made from thermoset resins and a fiberglass reinforcement. This grade of pultrusion shapes meets the NEMA GPO-3 specifications.
Downloads
Applications
This product can be used in the construction of boxes or nonconductive structures for electrical equipment installation. This product has a good arc and electrical resistance.
Specifications
Technical Data
| Flexural Strength (ASTM D-790) (psi) | 22 100 |
|---|---|
| Compressive Strength (ASTM D-695) | 33 100 |
| Specific Gravity (ASTM D-792) | 1.80 |
| IZOD Impact strength (Notch) (ASTM D-256) (ft-lb/in.) | 9 |
| Dielectric strength (ASTM D-149) (v/mil) | 450 |
| Arc Resistance (ASTM D-495) | 180 |
| Flammability (UL 94) | V0 |
| Temperature (UL746B) | 130°C (260°F) |
| Water absorption (ASTM D-570) % | 0.4 |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
