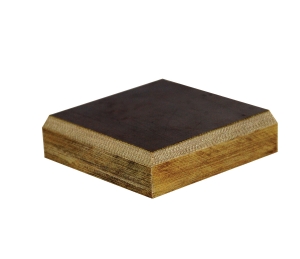

NP193P

The NP193P is composed of aramid and "soft glass" fibers combined to make a fabric that is stronger than pure aramid and less abrasive than glass fabrics. This material is impregnated with a high temperature phenolic resin matrix which includes a non-conducting solid lubricant. It has excellent mechanical strength at elevated temperatures and adverse environments.

Applications

Applications include wear plates for conveyor systems, valves plates, and compressor and pump vanes.

Specifications

Technical Data

Specific gravity (ASTM D-792) 1.43
Tensile strength (ASTM D-638) (psi) 21 600
Flexural strength (ASTM D-790) (psi) 30 700
Compressive strength (ASTM D-695) (psi) 36 600
Hardness, M Scale (ASTM D-785) 85
Humidity absorption, 24 hours % 2.62
N.B. The information, details and values indicated are to the best of our knowledge. We recommend to conduct tests according to local conditions. The data is subject to some variations without notice.
