Mica Flexible
FLEX. PHLOGO. 0.020"

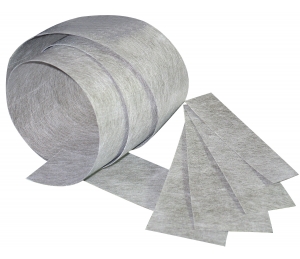

This fire-proof Mica paper is made by bonding phlogopite, muscovite mica paper with supporting materials. This results in a material that is very flexible and easy to wind on to narrow conductors.
Applications
It is suitable to use as a heat resistant barrier for fire-proof cables, and other industrial high temperature insulation applications.
Specifications
Technical Data
| Specific gravity (ASTM D-792) | 1.20 |
|---|---|
| Thickness | 0.020" |
| Tensile strength (ASTM D-638) (psi) | 9000/9500 |
| Tensile strength (N/cm) | Min 59 |
| Flexural strength (ASTM D-790) (psi) | 13 500 |
| Breakdown voltage (KV) | 5 |
| Compressive strength (ASTM D-695) (psi) | 12 500 |
| Hardness, M Scale (ASTM D-785) | 70 |
| Shear strength (ASTM D-732) (psi) | 6000/10 000 |
| Coeff. Thermal Exp. (ASTM D-696) In/In/°F x 10¯6 | 3.75 x 10 |
| Water absorption, 24 hours % | 0.15 |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
