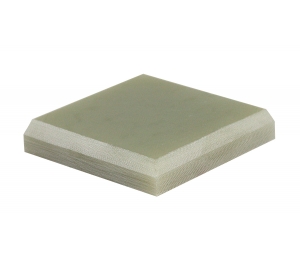

NEMA G10
This G10 is constructed of a woven glass fabric combined with easy-machining, non-brominated epoxy resin. It is engineered to provide Nema Grade G10 properties, but is easier to machine and more cost effective in many applications.
Downloads
Applications
Its applications include : low temperature thermal insulation, structural applications and various other mechanical and electrical applications at low to moderately high temperatures.
Specifications
Technical Data
| Specific gravity | 1.8 |
|---|---|
| Tensile strength (psi) | 40 000 |
| Flexural strength (psi) | 75 000 |
| Compressive strength (psi) | 65 000 |
| Hardness, M Scale | 110 |
| Bond strength (psi) | 2200 |
| Shear strength (psi) | 19 000 |
| Electric strength - V/MIL Cond A | 800 |
| Flammability rating | 94HB |
| Max. Oper. Temp. | 140°C (284°F) |
| Coeff. Thermal Exp. In/In/°C x 10^-5 | 1.00 |
| Water absorption % - 24 % | 0.11 |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
