TXP660S

Silicone fiberglass

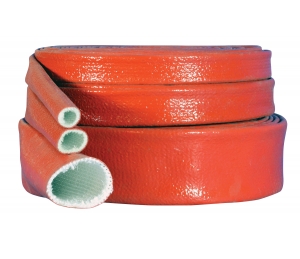

This tubing is made of 100% fiberglass and is covered with high temperature red silicone. Flexible, it adjusts itself to imperfect surfaces and around sharp corners.

Downloads

Applications

Used to cover pipes and tubes to make a static seal, the TXP660S offers an excellent protection from molten metal splashes up to 3000ºF. This tubing meets the "Aerospace Standards" AS1055B and AS1072.

Specifications

Technical Data

Temperature
Fiberglass braided tubing 535°C (1000°F)
Red silicone 260°C (500°F)
Diameters 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/4", 2-1/2", 2-3/4", 3", 3-1/4", 3-1/2", 3-3/4", 4"
Length per roll 50, 100 feet
N.B. The information, details and values indicated are to the best of our knowledge. We recommend to conduct tests according to local conditions. The data is subject to some variations without notice.
