3R518

Polyvinyl

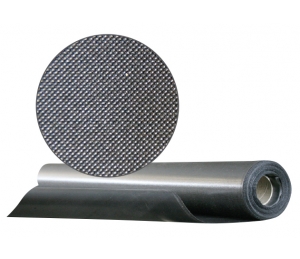

The 3R 518 is a polyester fabric coated with a PVC vinyl. It is resistant to cutting liquids, ultra-violets and oils.

Applications

Commonly used to make protective boots.

Specifications

Technical Data

Weight (oz/yd²) 28
Thickness 0.033"
Temperature -40°C to 65°C (-40°F to 145°F)
Color Blue, Yellow and black
Breaking strenght (DIN53352 BS3424 Method 6A)
Warp 527 lbs
Weft 606l lbs
Tear strenght (DIN53356 BS3424 Method 7A)
Warp 87.5 lbs
Weft 84.2 lbs
N.B. The information, details and values indicated are to the best of our knowledge. We recommend to conduct tests according to local conditions. The data is subject to some variations without notice.
