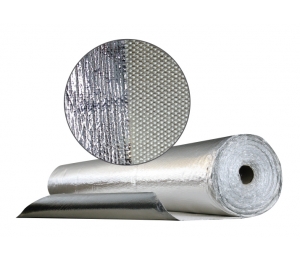

Aluminized fiberglass

3R510AL is made from highly texturized silica yarn and is laminated with 0.001" thick aluminum foil.


Typical applications include removable insulation pads, vapor shields and flange shields. Recommended for less severe applications requiring heat reflectivity and molten metal splash resistance. Typical industries include safety garment industry, steel, aluminum, copper and other basic metals groups, construction industry, chemical processing plants, petroleum refineries, automotive industry and maritime. Resist most acids, alkalis and solvents, with the exception of hydrofluoric acids and corrosive environments at elevated temperatures.


Technical Data

Weight ( oz/yd² for base fabric)
Fiberglass fabric 20
Weight ( oz/yd² for foil fabric)
Foil 20
Construction: WARP X FILL 20 x 14
Thickness (Base fabric) 0.035"
Fiberglass fabric 535°C (1000°F)
Aluminized foil 150°C (300°F)
N.B. The information, details and values indicated are to the best of our knowledge. We recommend to conduct tests according to local conditions. The data is subject to some variations without notice.
