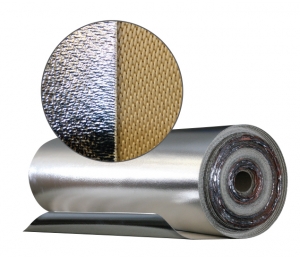

3R1220AL
Silica
The aluminized silica fabric is a flexible textile which may be employed at high temperatures, it offers excellent thermal insulation value across a wide temperature spectrum and exhibits good chemical resistance.
Downloads
Applications
The 3R1220AL is used in the fabrication of insulation pads in the treatment of metals and for equipment protection. The aluminized side is used to reflect the radiant heat. It is also useful for equipment and machinery protection.
Specifications
Technical Data
| Width | 36" Typ. (Tolerance 33" to 36" after lamination) |
|---|---|
| Weight | 36 oz/yd² |
| Thickness | 0.054" |
| Temperature | Silica cloth: 980°C (1 800°F), Metalized polyester film: 232°C (450°F) |
| Content | 96% silica (min.) |
| Weave | Satin |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
