3R810SH

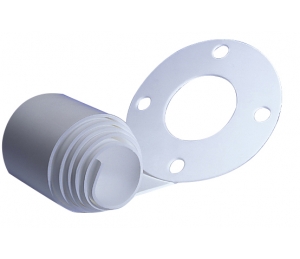

The 3R 810SH gasket sheet is manufactured by expanding 100% virgin PTFE using a proprietary process that produces a uniform and highly fibrillated microstructure with equal tensile strength in all directions. The resulting product exhibits characteristics significantly different than conventional PTFE sheets. This style is much softer and more flexible than regular PTFE sheet and thus conforms easily to irregular and rough surfaces. In addition, the material is easier to compress and minimizes creep and cold flow.
Downloads
Applications
This material is an all purpose gasket sheet that can replace all other types of PTFE sheets. It will seal all aggressive chemicals over the entire 0-14 pH range except for molten alkali metals and elemental fluorine. Made from 100% virgin PTFE, it not only resists chemical attack, but it will not contaminate or discolor end products. These industries currently use expanded PTFE sheets:
-distillers, pharmaceutical, iron and steel manufacturing, petrochemical, general chemical, pulp and paper, food and beverage, power generation and marine. Low creepnot requiring frequent retightening of bolts. High compressibility recommended for fragile flange material like ceramic, glass and plastic. Atmospheric agents like sunlight, ozone and ultraviolet light (UV) do not attack it.
Specifications
Technical Data
| Temperature | Continuous: -268°C to 260°C (-450°F to 500°F), Short Term: 315°C (600°F) |
|---|---|
| Color | White |
| pH | 0 - 14 (except molen alkali metals and elemental fluorine) |
| Thickness | 1/16'', 1/8'', 1/4'' |
| Stress retention (DIN 52913) | 15 MPa |
| Compressibility (ASTM F-36) | 45% |
| Recovery (ASTM F-36) | 14% |
| Tensile strength (ASTM F-152) | >20 MPa |
| Density | 0.9 g/cm³ |
| Shelf life | Unlimited (non-aging) |
