W

Spiral gaskets

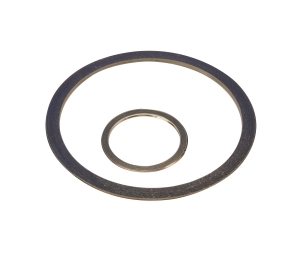

This spiral-wound gasket is made of a thin metallic srip on the exterior and a non metalic material on the interior. The two are wounded together under pressure. The metal ring holds the filler and acts as spring between the two flanges. This gasket possessesain excellent mechanical resistance and is resilient.

Applications

The W style gaskets are for applications with high temperature variations and/or pressure variations, and/or flange rotation problems. They are also used to seal in processes where fluid pressure is variable.

Specifications

Technical Data

Filler material
Mica/Graphite (Pink)
Maximum temperature 232°C (450°F)
Graphie flexible (Grey)
Maximum temperature 450°C (840°F)
PTFE (White)
Maximum temperature 260°C (500°F)
N.B. The information, details and values indicated are to the best of our knowledge. We recommend to conduct tests according to local conditions. The data is subject to some variations without notice.
