STYLE 905
Heat exchanger gaskets

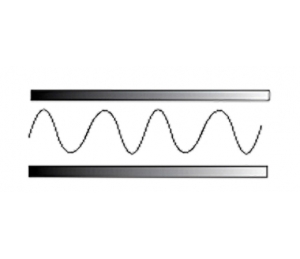

This Metalbest 905 is a corrugated gasket metal core with flexible graphite facings. It combines the sealing properties of the flexible graphite with the extrusion resistance of the corrugated metal core. It is designed to maintain a positive seal through thermal cycling and shock load conditions. The standard material for the metal core is 316 Stainless Steel to a thickness of 0.080".
This gasket have gained popularity in the marketplace in Class 150 and 300 ASME B16.5 flanges due to its ability to seal at low bolt loads.
Applications
One of the most frequent uses of style 905 Metalbest gaskets are in shell and tube heat exchangers, due to their ability of avoiding mechanical shearing problems due to frequent thermal variations.
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
