3R812

Teflon

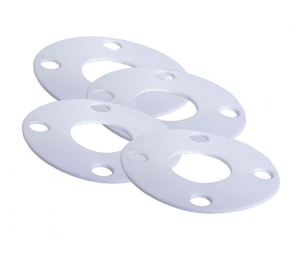

The virgin PTFE (polytetrafluoroethylene) sheet is particularly good for applications in the food and beverage industry where high purity materials are required. It is also used where contamination or discoloration of flow media cannot be tolerated.

Downloads

Applications

Sealing materials where chemical products are present.

Specifications

Technical Data

Temperature -200°C to 260°C (-325°F to 500°F)
Color White
Available thickness 1/64", 1/32", 1/16", 3/32", 1/8", 3/16", 1/4"
Available sizes 48" X 48", 60" X 60" ou 48" X 60" (rolls)

Physical properties

Tensile strenght at 73°F (ASTM D638-61T) (psi) 2000-3000 psi
ASTM Test - Properties
D638-61T - Tensile strenght at 73°F (psi) 2000-3000
D638-61T - Elongation (%) 100-26
D570-59aT - Water absorption (%) 0.01
D150-59T - Dielectric constant (1000 cps) 2.4
D257-61 - Dielectric strenght in air (volts/mil) 235
D792-60T - Specific gravity 2.20-2.3
Elongation (ASTM D638-61T) % 100-260%
Water absorption (ASTM D570-59aT) % 0.013
Dielectric constant (1000 cps) (ASTM D150-59T) 2.4
Dielectric strength in air (ASTM D257-61) Volts /mil. 235
Specific gravity (ASTM D792-60T) 2.20-2.3
N.B. The information, details and values indicated are to the best of our knowledge. We recommend to conduct tests according to local conditions. The data is subject to some variations without notice.
