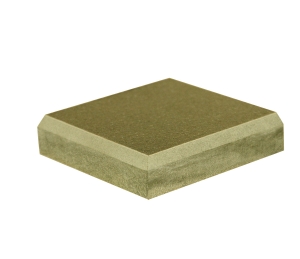

SK563
Phlogopite mica sk563
The Mica SK563 sheet is made from a mica phlogopite paper with a high temperature adhesive. It has a good dielectric resistance and it is easy to machine .This sheet resists to acids and temperature up to 1832°F.
Downloads
Applications
It is used to fabricate dielectric flanges in foundries and aluminum smelters. It is also frequently used for applications in electrical appliances.
Specifications
Technical Data
| Thickness (mm) | 1.5 to 30.0 |
|---|---|
| Density (g/cm³) | 1.6 ~ 2.45 |
| Mica content (%) | =90 |
| Flexural strenght (Mpa) | =120 |
| Dielectric strenght (MV/m) | =10 |
| Sheet size | 600 mm X 1000 mm ou 1000 mm X 1200mm |
| Maximum temperature | 1472°F (800°C) |
| Continuous temperature | 1382°F (750°C) |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
