3R2300

Ceramic

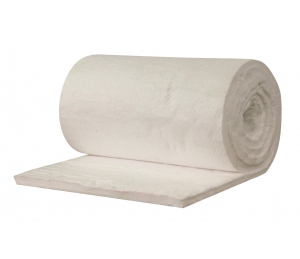

The ceramic fiber blankets are produced from exceptionally pure oxides of alumina and silica using the spinning process. The 3R2300 is flexible and stays stable at high temperatures which makes it an excellent choice for insulation. It is also recommended as a refractory support.

Downloads

Applications

The ceramic fiber blanket applications are numerous. It is used as insulation for furnaces, boiler combustion chambers, heat exchangers, gas turbines and high temperature fans, as removable insulating pads on steam valves and separators. It can also be used to fabricate insulating mats for superheated seals, stress relief pads and expansion joints. The 3R2300 is especially recommended for those applications requiring a low iron content of less than 1% and for highly reducing atmospheres.

Specifications

Technical Data

Color White
Density, lbs/ft³ (kg/m³) 4, 6, 8 (64, 96, 128)
Thickness, in. (mm) 1/4 - 2 (6.25 - 50)
Continuous use limit 1 175 °C ( 2145 °F)
Temperature maximum 1 315 °C ( 2395 °F)
Melting point, °F (°C) 1 760 °C ( 3200 °F)
Chemical Analysis, Nominal %
Alumina, Al2O3 46
Silica, SiO2 54
Ferric oxyde, Fe2O3 0.05
Thermal conductivity, BTU-in/hr-ft²- °F (w/m.k), ASTM C201
Mean Temperature - 500°F (260°C)
4 pcf 0.54 (0.08)
6 pcf 0.47 (0.07)
8 pcf 0.44 (0.06)
Mean Temperature - 1000°F (538°C)
4 pcf 1.34 (0.19)
6 pcf 1.06 (0.15)
8 pcf 0.93 (0.13)
Mean Temperature - 1500°F (816°C)
4 pcf 2.48 (0.36)
6 pcf 1.90 (0.27)
8 pcf 1.60 (0.23)
Mean Temperature - 1800°F (982°C)
4 pcf 3.23 (0.47)
6 pcf 2.45 (0.35)
8 pcf 2.05 (0.30)
Mean Temperature - 2000°F (1093°C)
4 pcf 3.74 (0.54)
6 pcf 2.83 (0.41)
8 pcf 2.34 (0.34)
N.B. The information, details and values indicated are to the best of our knowledge. We recommend to conduct tests according to local conditions. The data is subject to some variations without notice.
