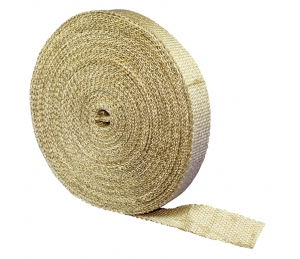

TXP121WT

Vermiculite

The tape is made of 100% fiberglass which is coated with a vermiculite solution. This noncombustible coating, made up of plate-like mineral crystals, acts like an armor to the fiberglass. Thus, when heat strikes the fabric, it travels across rather than through it, shielding the fiberglass from the heat source. This tape remains stable up to 1500°F.

Downloads

Applications

The TXP121WT tapes have proven to be both safe and effective for many different applications such as : hot side of removable insulation covers, gasketing, pipe wrap and exhaust manifold wrap.

Specifications

Technical Data

Thickness 1/16", 1/8"
Widths available 1", 1 1/2", 2", 3", 3 1/2", 4", 5", 6"
Temperature 815°C (1495°F)
N.B. The information, details and values indicated are to the best of our knowledge. We recommend to conduct tests according to local conditions. The data is subject to some variations without notice.
