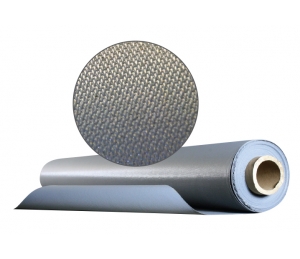

TXP507
Teflon coated fiberglass
The TXP507 is a fiberglass fabric coated with a PTFE resin on both sides. It resists weather changes, chemical products and abrasion. It is easily sewn and its flexibility allows for making more complex shapes. It has low flammability properties, is easily cleaned and emits minimal smoke.
Downloads
Applications
- Removable insulation blankets
- Protective sleeves for valves, pumps, flanges
- Protection against frost
- Protection against chemicals
Specifications
Technical Data
| Temperature | -101°C to 315°C (-150°F to 600°F) |
|---|---|
| Weight | 18oz/yd² |
| Thickness | 0.018" |
| Tensile strength (ASTM D5034) | Warp: 410 lbs/in, Fill: 350 lbs/in |
| Mullen burst (ASTM D3786) | 650psi |
| Flame resistance | Char length: 1 in max., Flameout: 1 sec. max. |
| Width | 60" |
| Length | 50 yd/roll |
N.B. The information presented may differ from practice. We recommend conducting tests according to the conditions of use. We accept no responsibility for results obtained by the application of this information or the safety and suitability of our products. The data is subject to certain variations without notice.
