3R610

Silica

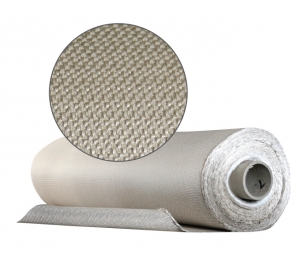

This silica fabric is a flexible which may be employed continuously over lengthy periods, at high temperatures. It has a melting point of around 3000°F and remains flexible at temperatures where many other fabrics would be damaged. The 3R610 offers excellent thermal insulation values across a wide temperature spectrum and exhibits good chemical resistance and electrical insulation properties. Manufactured in compliance with all requirements of MIL C-24576, Type 1, Class 1.

Downloads

Applications

It is used in a wide range of industrial applications such as : welding drop cloths, stress relieving insulation fabrics and blankets for protecting cables and machinery from molten metal splash.

Specifications

Technical Data

Width 36"-48"
Weight (oz/yd²) 36
Weight ( oz/yd²) 18
Thickness 0.030"
Temperature resistance 985°C (1 800°F)
Melting point 1645°C (3000°F)
Content (min) 96% silica
Weave Satin
http://whiteearthdesign.co.uk/shop/?paged=1 N.B. The information, details and values indicated are to the best of our knowledge. We recommend to conduct tests according to local conditions. The data is subject to some variations without notice.
