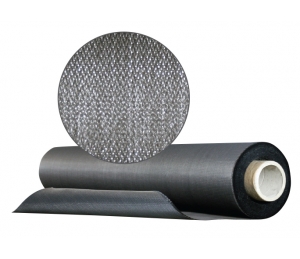

TXP306G

Graphite fiberglass

The TXP306G is a fiberglass fabric with a graphite finish which confers much better resistance to abrasion in arduous conditions and high temperature environments. This cloth has a high degree of stability, flexibility and strength.

Applications

Offering a high resistance to flame, flexibility and abrasion, this cloth is an excellent choice for protective cushions.

Specifications

Technical Data

Filament diameter
Tensile strenght
Warp 960 N/cm
Weft 720 N/cm
Weight (g/m²) 438
Thickness 0.40 mm
Maximum operating temperature 550°C (1022°F)
N.B. The information, details and values indicated are to the best of our knowledge. We recommend to conduct tests according to local conditions. The data is subject to some variations without notice.
